Feature:

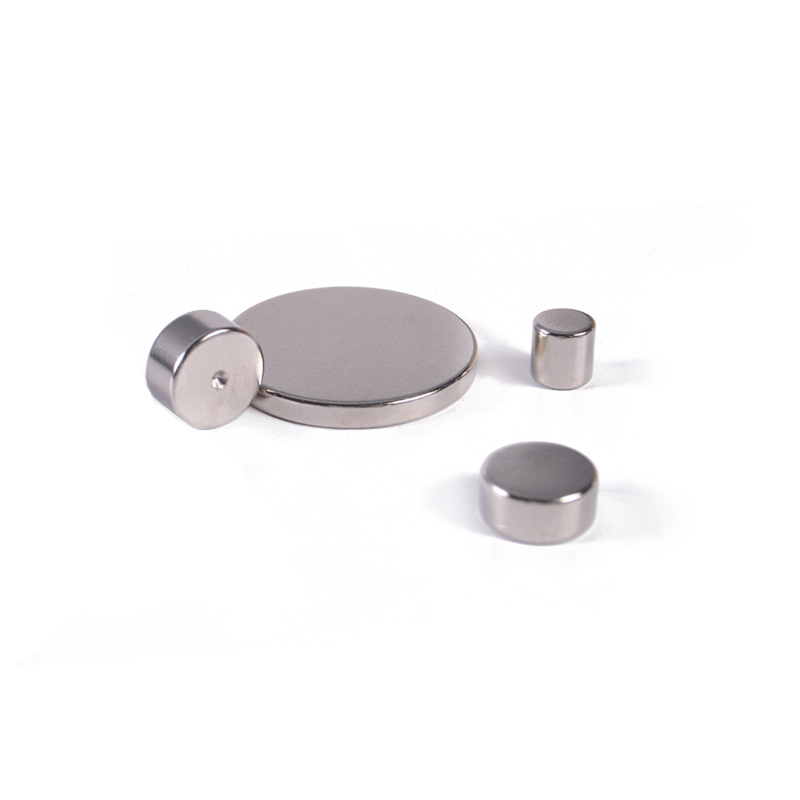

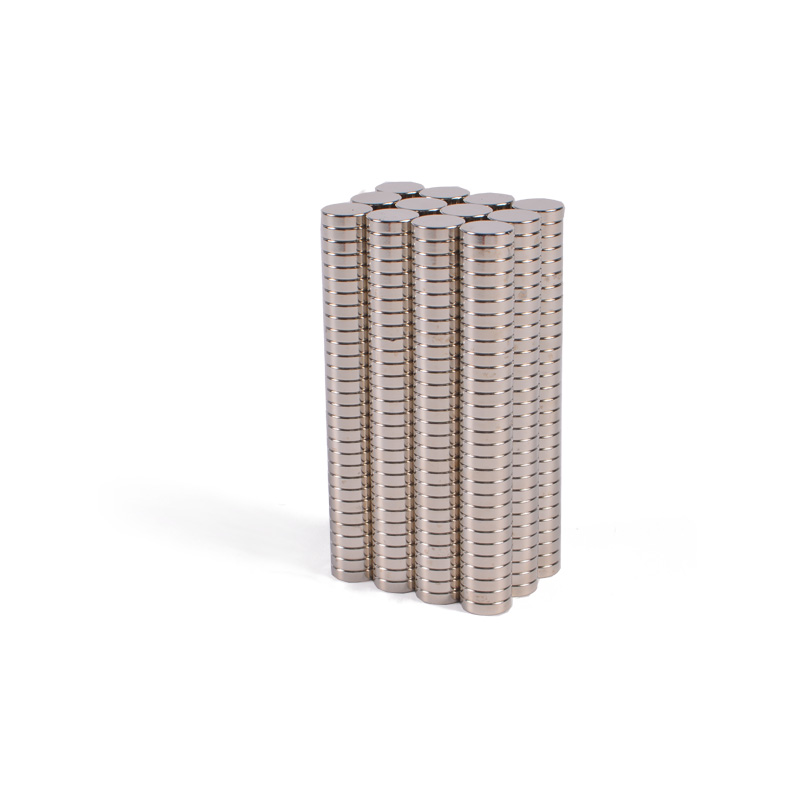

Disk magnets are known for their small size, high magnetic force, and wide applicability. Their flat surface and circular shape make them easy to embed in tight spaces, and they provide consistent and strong magnetic fields. Sintered NdFeB disk magnets are also resistant to demagnetization and can be coated for corrosion protection.
Why choose Sintered Neodymium Disk Magnet
● High magnetic performance: Disk magnets deliver powerful magnetic force even at small sizes, ideal for compact devices.
● Versatile application: They can be used in a wide range of applications from electronic sensors to industrial clamping.
● Easy installation: The flat surface allows for secure bonding or mounting on various materials.
● Customizable dimensions: Disk magnets can be tailored in diameter and thickness to meet specific design needs.
● Stable output: Their shape and material properties provide reliable and long-lasting magnetic force.
Application:
NdFeB disk magnets are commonly found in precision electronic components, such as microphones, sensors, and miniature motors. They are also used in medical instruments, magnetic therapy devices, and smart gadgets. As more industries move toward miniaturization and energy efficiency, disk magnets continue to play a critical role in modern product development.
Physical Characteristics：
| Material grade | Remanence Br (T/kG) | Coercivity Hcb (kOe/kA/m) | Intrinsic Coercivity Hcj (kOe/kA/m) | Maximum Energy Product (MGOe/kJ/m³) | Dy | Tb | Remarks |
| KN35 | ≥1.18(11.8) | ≥10.8(860) | ≥12(955) | 33～36(263～287) | √ | × | Scrap Inclusion |
| KN38 | ≥1.23(12.3) | ≥10.8(860) | ≥12(955) | 36～39(287～310) | √ | × | Scrap Inclusion |
| KN40 | ≥1.26(12.6) | ≥11.0(876) | ≥12(955) | 38～41(302～326) | √ | × | Scrap Inclusion |
| KN42 | ≥1.29(12.9) | ≥11.0(876) | ≥12(955) | 40～43(318～342) | √ | × | Scrap Inclusion |
| KN45 | ≥1.33(13.3) | ≥11.0(876) | ≥12(955) | 43～46(342～366) | × | × | |
| KN48 | ≥1.37(13.7) | ≥10.8(860) | ≥12(955) | 46～49(366～390) | × | × | |
| KN50 | ≥1.39(13.9) | ≥10.5(836) | ≥12(955) | 47～51(374～406) | × | × | |
| KN52 | ≥1.42(14.2) | ≥10.0(796) | ≥11(876) | 49～53(390～422) | × | × | |
| KN55 | ≥1.46(14.6) | ≥9.0(716) | ≥11(876) | 52～56(414～446) | × | × | |
| KN35M | ≥1.18(11.8) | ≥10.8(860) | ≥14(1114) | 33～36(263～287) | √ | × | Scrap Inclusion |
| KN38M | ≥1.23(12.3) | ≥11.0(876) | ≥14(1114) | 36～39(287～310) | √ | × | Scrap Inclusion |
| KN40M | ≥1.26(12.6) | ≥11.4(910) | ≥14(1114) | 38～41(302～326) | √ | × | Scrap Inclusion |
| KN42M | ≥1.29(12.9) | ≥11.8(939) | ≥14(1114) | 40～43(318～342) | √ | × | Scrap Inclusion |
| KN45M | ≥1.33(13.3) | ≥11.8(939) | ≥14(1114) | 43～46(342～366) | √ | × | Scrap Inclusion |
| KN48M | ≥1.37(13.7) | ≥11.8(939) | ≥14(1114) | 46～49(366～390) | × | × | |
| KN50M | ≥1.39(13.9) | ≥11.5(915) | ≥14(1114) | 47～51(374～406) | × | × | |
| KN52M | ≥1.42(14.2) | ≥10.8(860) | ≥13(1035) | 49～53(390～422) | × | × | |
| KN54M | ≥1.46(14.6) | ≥10.8(860) | ≥13(1035) | 52～56(414～446) | × | × | |
| KN35H | ≥1.18(11.8) | ≥10.8(860) | ≥17(1353) | 33～36(263～287) | √ | × | |
| KN38H | ≥1.23(12.3) | ≥11.0(876) | ≥17(1353) | 36～39(287～310) | √ | × | |
| KN40H | ≥1.26(12.6) | ≥11.4(910) | ≥17(1353) | 38～41(302～326) | √ | × | |
| KN42H | ≥1.29(12.9) | ≥11.8(939) | ≥17(1353) | 40～43(318～342) | √ | × | |
| KN45H | ≥1.33(13.3) | ≥11.8(939) | ≥17(1353) | 43～46(342～366) | √ | × | |
| KN48H | ≥1.37(13.7) | ≥11.8(939) | ≥17(1353) | 46～49(366～390) | √ | × | |
| KN50H | ≥1.39(13.9) | ≥11.5(915) | ≥16(1274) | 47～51(374～406) | √ | × | |
| KN52H | ≥1.42(14.2) | ≥10.8(860) | ≥16(1274) | 49～53(390～422) | √ | × | |
| KN54H | ≥1.46(14.6) | ≥10.8(860) | ≥16(1274) | 52～56(414～446) | √ | √ | |
| KN30SH | ≥1.08(10.8) | ≥10.0(796) | ≥20(1592) | 28～31(223～247) | × | × | |
| KN33SH | ≥1.14(11.4) | ≥10.5(836) | ≥20(1592) | 31～34(247～271) | × | × | |
| KN35SH | ≥1.18(11.8) | ≥10.8(860) | ≥20(1592) | 33～36(263～287) | √ | × | |
| KN38SH | ≥1.23(12.3) | ≥11.0(876) | ≥20(1592) | 36～39(287～310) | √ | × | |
| KN40SH | ≥1.26(12.6) | ≥11.4(910) | ≥20(1592) | 38～41(302～326) | √ | × | |
| KN42SH | ≥1.29(12.9) | ≥11.8(939) | ≥20(1592) | 40～43(318～342) | √ | × | |
| KN45SH | ≥1.33(13.3) | ≥11.8(939) | ≥20(1592) | 43～46(342～366) | √ | × | |
| KN48SH | ≥1.37(13.7) | ≥11.8(939) | ≥19(1512) | 46～49(366～390) | √ | × | |
| KN50SH | ≥1.39(13.9) | ≥11.5(915) | ≥19(1512) | 47～51(374～406) | × | √ | |
| KN52SH | ≥1.42(14.2) | ≥10.8(860) | ≥19(1512) | 49～53(390～422) | × | √ | |
| KN54SH | ≥1.46(14.6) | ≥10.8(860) | ≥19(1512) | 52～56(414～446) | × | √ | |
| KN30UH | ≥1.08(10.8) | ≥10.0(796) | ≥25(1990) | 28～31(223～247) | √ | × | |
| KN33UH | ≥1.14(11.4) | ≥10.5(836) | ≥25(1990) | 31～34(247～271) | √ | × | |
| KN35UH | ≥1.18(11.8) | ≥10.8(860) | ≥25(1990) | 33～36(263～287) | √ | × | |
| KN38UH | ≥1.23(12.3) | ≥11.0(876) | ≥25(1990) | 36～39(287～310) | √ | × | |
| KN40UH | ≥1.26(12.6) | ≥11.4(910) | ≥25(1990) | 38～41(302～326) | √ | × | |
| KN42UH | ≥1.29(12.9) | ≥11.8(939) | ≥25(1990) | 40～43(318～342) | √ | × | |
| KN45UH | ≥1.33(13.3) | ≥11.8(939) | ≥24(1910) | 43～46(342～366) | √ | √ | |
| KN48UH | ≥1.37(13.7) | ≥11.8(939) | ≥24(1910) | 46～49(366～390) | √ | √ | |
| KN50UH | ≥1.39(13.9) | ≥11.5(915) | ≥24(1910) | 47～51(374～406) | √ | √ | |
| KN52UH | ≥1.42(14.2) | ≥10.8(860) | ≥24(1910) | 49～53(390～422) | √ | √ | |
| KN30EH | ≥1.08(10.8) | ≥10.0(796) | ≥30(2388) | 28～31(223～247) | √ | √ | |
| KN33EH | ≥1.13(11.3) | ≥10.5(836) | ≥30(2388) | 31～34(247～271) | √ | √ | |
| KN35EH | ≥1.17(11.7) | ≥10.8(860) | ≥30(2388) | 33～36(263～287) | √ | √ | |
| KN38EH | ≥1.22(12.2) | ≥11.0(876) | ≥30(2388) | 36～39(287～310) | √ | √ | |
| KN40EH | ≥1.25(12.5) | ≥11.0(876) | ≥29(2308) | 38～41(302～326) | √ | √ | |
| KN42EH | ≥1.28(12.8) | ≥10.0(796) | ≥29(2308) | 40～43(318～342) | √ | √ | |
| KN45EH | ≥1.33(13.3) | ≥11.8(939) | ≥29(2308) | 43～46(342～366) | √ | √ | |
| KN48EH | ≥1.37(13.7) | ≥11.8(939) | ≥29(2308) | 46～49(366～390) | √ | √ | |
| KN30TH | ≥1.08(10.8) | ≥10.0(796) | ≥35(2786) | 28～31(223～247) | √ | √ | |
| KN33TH | ≥1.13(11.3) | ≥10.5(836) | ≥35(2786) | 31～34(247～271) | √ | √ | |
| KN35TH | ≥1.17(11.7) | ≥10.8(860) | ≥35(2786) | 33～36(263～287) | √ | √ | |
| KN38TH | ≥1.22(12.2) | ≥11.0(876) | ≥34(2706) | 35～39(279～310) | √ | √ | |
| KN40TH | ≥1.25(12.5) | ≥10.5(836) | ≥34(2706) | 38～41(302～326) | √ | √ | |
| KN42TH | ≥1.28(12.8) | ≥10.0(796) | ≥34(2706) | 40～43(318～342) | √ | √ |
