Feature:

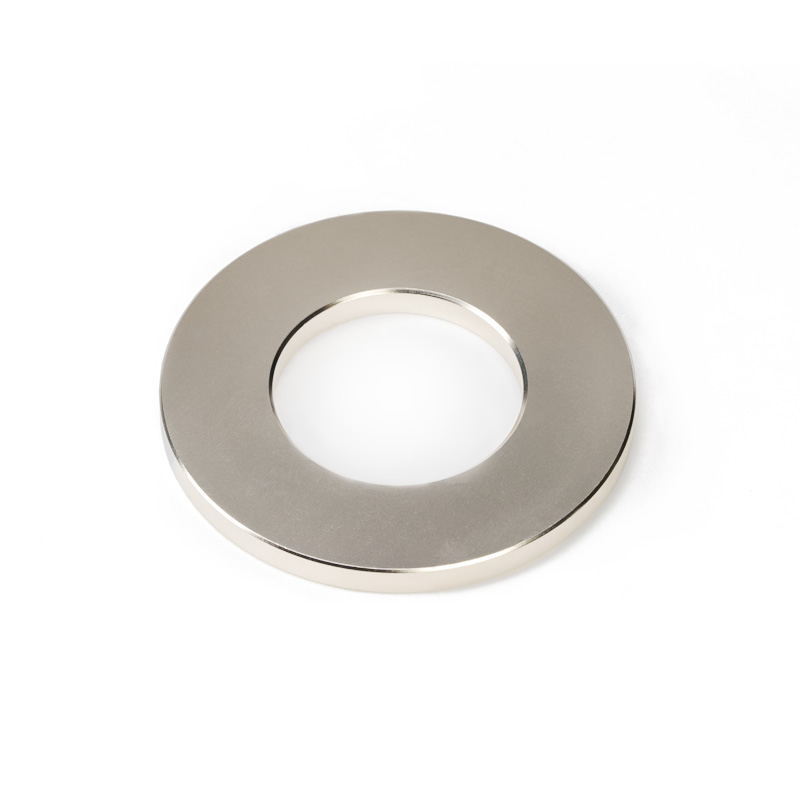

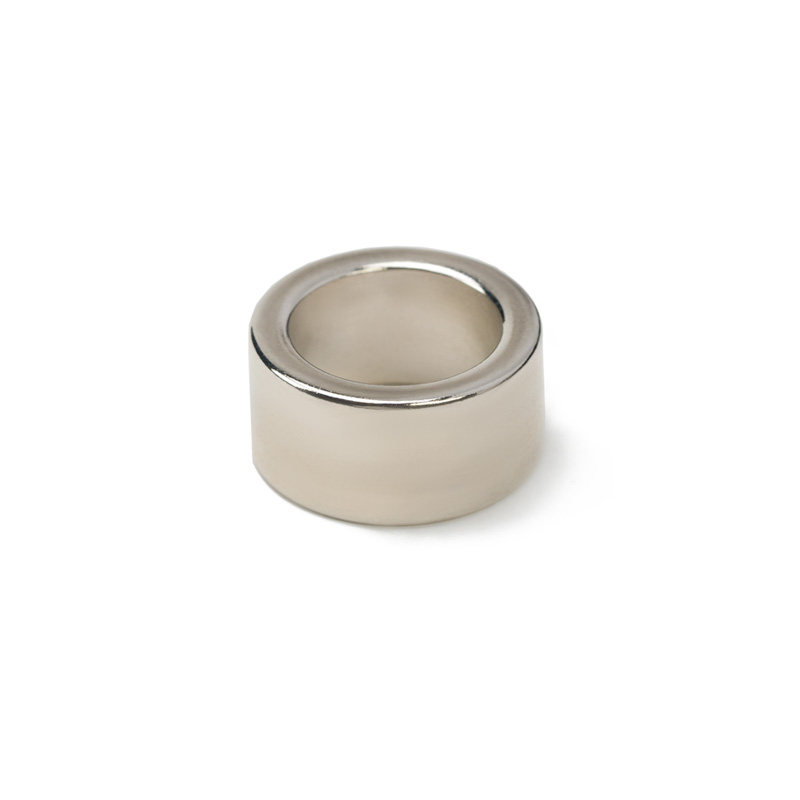

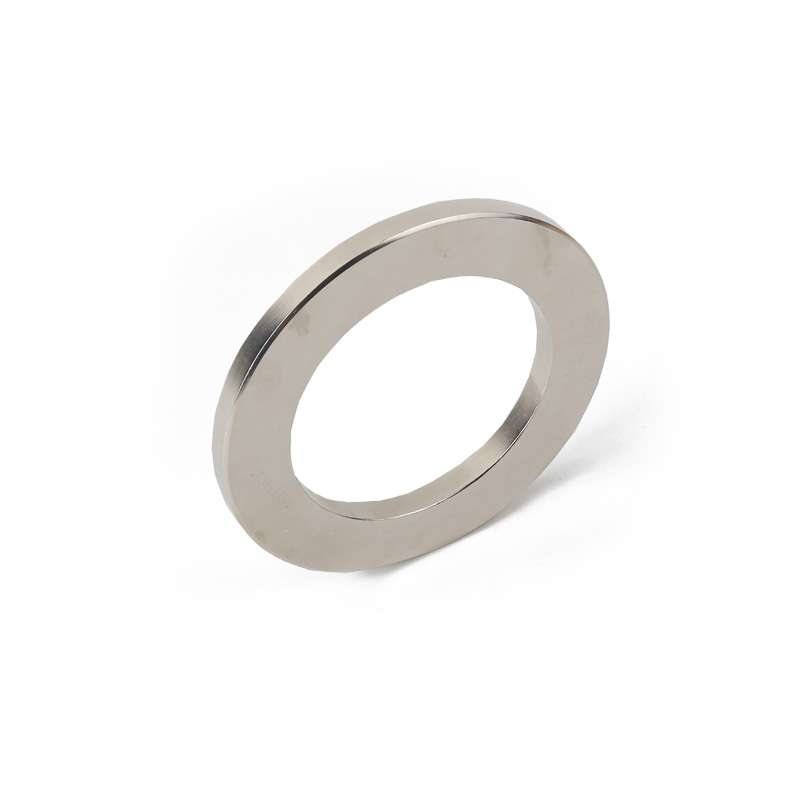

Sintered NdFeB ring magnets are compact, lightweight, and provide excellent magnetic strength. Among all rare-earth magnets, they offer the highest energy product, making them ideal for applications that demand strong, reliable performance in limited space. Their round shape ensures a consistent and stable magnetic field.
Why choose Sintered Neodymium Ring Magnet
● Increased magnetic field density: Ring magnets have a circular shape that provides a more concentrated magnetic field, making them ideal for applications that require a strong magnetic field in a specific direction.
● Easy to assemble: Ring magnets can be stacked or placed in a specific orientation to create a more complex magnetic assembly, which makes them suitable for use in multi-magnet systems.
● Space-saving: Ring magnets take up less space than other shapes, which makes them ideal for applications where compactness is important.
● Improved stability: Ring magnets have a symmetrical shape that provides improved stability compared to other shapes, making them suitable for applications that require stability, such as motors or generators.
● Aesthetically pleasing: Ring magnets have a simple and elegant shape that can be appealing for certain applications, such as jewelry or decorative items.
Application:
NdFeB ring magnets are widely used in brushless DC motors, precision sensors, magnetic couplings, and other industrial applications. In particular, they are essential in modern green energy systems such as wind turbines and hybrid vehicles. With the increasing demand for high-efficiency, low-carbon technologies, ring magnets made of NdFeB are becoming key components in energy-saving and environmentally friendly solutions.
Physical Characteristics：
| Material grade | Remanence Br (T/kG) | Coercivity Hcb (kOe/kA/m) | Intrinsic Coercivity Hcj (kOe/kA/m) | Maximum Energy Product (MGOe/kJ/m³) | Dy | Tb | Remarks |
| KN35 | ≥1.18(11.8) | ≥10.8(860) | ≥12(955) | 33～36(263～287) | √ | × | Scrap Inclusion |
| KN38 | ≥1.23(12.3) | ≥10.8(860) | ≥12(955) | 36～39(287～310) | √ | × | Scrap Inclusion |
| KN40 | ≥1.26(12.6) | ≥11.0(876) | ≥12(955) | 38～41(302～326) | √ | × | Scrap Inclusion |
| KN42 | ≥1.29(12.9) | ≥11.0(876) | ≥12(955) | 40～43(318～342) | √ | × | Scrap Inclusion |
| KN45 | ≥1.33(13.3) | ≥11.0(876) | ≥12(955) | 43～46(342～366) | × | × | |
| KN48 | ≥1.37(13.7) | ≥10.8(860) | ≥12(955) | 46～49(366～390) | × | × | |
| KN50 | ≥1.39(13.9) | ≥10.5(836) | ≥12(955) | 47～51(374～406) | × | × | |
| KN52 | ≥1.42(14.2) | ≥10.0(796) | ≥11(876) | 49～53(390～422) | × | × | |
| KN55 | ≥1.46(14.6) | ≥9.0(716) | ≥11(876) | 52～56(414～446) | × | × | |
| KN35M | ≥1.18(11.8) | ≥10.8(860) | ≥14(1114) | 33～36(263～287) | √ | × | Scrap Inclusion |
| KN38M | ≥1.23(12.3) | ≥11.0(876) | ≥14(1114) | 36～39(287～310) | √ | × | Scrap Inclusion |
| KN40M | ≥1.26(12.6) | ≥11.4(910) | ≥14(1114) | 38～41(302～326) | √ | × | Scrap Inclusion |
| KN42M | ≥1.29(12.9) | ≥11.8(939) | ≥14(1114) | 40～43(318～342) | √ | × | Scrap Inclusion |
| KN45M | ≥1.33(13.3) | ≥11.8(939) | ≥14(1114) | 43～46(342～366) | √ | × | Scrap Inclusion |
| KN48M | ≥1.37(13.7) | ≥11.8(939) | ≥14(1114) | 46～49(366～390) | × | × | |
| KN50M | ≥1.39(13.9) | ≥11.5(915) | ≥14(1114) | 47～51(374～406) | × | × | |
| KN52M | ≥1.42(14.2) | ≥10.8(860) | ≥13(1035) | 49～53(390～422) | × | × | |
| KN54M | ≥1.46(14.6) | ≥10.8(860) | ≥13(1035) | 52～56(414～446) | × | × | |
| KN35H | ≥1.18(11.8) | ≥10.8(860) | ≥17(1353) | 33～36(263～287) | √ | × | |
| KN38H | ≥1.23(12.3) | ≥11.0(876) | ≥17(1353) | 36～39(287～310) | √ | × | |
| KN40H | ≥1.26(12.6) | ≥11.4(910) | ≥17(1353) | 38～41(302～326) | √ | × | |
| KN42H | ≥1.29(12.9) | ≥11.8(939) | ≥17(1353) | 40～43(318～342) | √ | × | |
| KN45H | ≥1.33(13.3) | ≥11.8(939) | ≥17(1353) | 43～46(342～366) | √ | × | |
| KN48H | ≥1.37(13.7) | ≥11.8(939) | ≥17(1353) | 46～49(366～390) | √ | × | |
| KN50H | ≥1.39(13.9) | ≥11.5(915) | ≥16(1274) | 47～51(374～406) | √ | × | |
| KN52H | ≥1.42(14.2) | ≥10.8(860) | ≥16(1274) | 49～53(390～422) | √ | × | |
| KN54H | ≥1.46(14.6) | ≥10.8(860) | ≥16(1274) | 52～56(414～446) | √ | √ | |
| KN30SH | ≥1.08(10.8) | ≥10.0(796) | ≥20(1592) | 28～31(223～247) | × | × | |
| KN33SH | ≥1.14(11.4) | ≥10.5(836) | ≥20(1592) | 31～34(247～271) | × | × | |
| KN35SH | ≥1.18(11.8) | ≥10.8(860) | ≥20(1592) | 33～36(263～287) | √ | × | |
| KN38SH | ≥1.23(12.3) | ≥11.0(876) | ≥20(1592) | 36～39(287～310) | √ | × | |
| KN40SH | ≥1.26(12.6) | ≥11.4(910) | ≥20(1592) | 38～41(302～326) | √ | × | |
| KN42SH | ≥1.29(12.9) | ≥11.8(939) | ≥20(1592) | 40～43(318～342) | √ | × | |
| KN45SH | ≥1.33(13.3) | ≥11.8(939) | ≥20(1592) | 43～46(342～366) | √ | × | |
| KN48SH | ≥1.37(13.7) | ≥11.8(939) | ≥19(1512) | 46～49(366～390) | √ | × | |
| KN50SH | ≥1.39(13.9) | ≥11.5(915) | ≥19(1512) | 47～51(374～406) | × | √ | |
| KN52SH | ≥1.42(14.2) | ≥10.8(860) | ≥19(1512) | 49～53(390～422) | × | √ | |
| KN54SH | ≥1.46(14.6) | ≥10.8(860) | ≥19(1512) | 52～56(414～446) | × | √ | |
| KN30UH | ≥1.08(10.8) | ≥10.0(796) | ≥25(1990) | 28～31(223～247) | √ | × | |
| KN33UH | ≥1.14(11.4) | ≥10.5(836) | ≥25(1990) | 31～34(247～271) | √ | × | |
| KN35UH | ≥1.18(11.8) | ≥10.8(860) | ≥25(1990) | 33～36(263～287) | √ | × | |
| KN38UH | ≥1.23(12.3) | ≥11.0(876) | ≥25(1990) | 36～39(287～310) | √ | × | |
| KN40UH | ≥1.26(12.6) | ≥11.4(910) | ≥25(1990) | 38～41(302～326) | √ | × | |
| KN42UH | ≥1.29(12.9) | ≥11.8(939) | ≥25(1990) | 40～43(318～342) | √ | × | |
| KN45UH | ≥1.33(13.3) | ≥11.8(939) | ≥24(1910) | 43～46(342～366) | √ | √ | |
| KN48UH | ≥1.37(13.7) | ≥11.8(939) | ≥24(1910) | 46～49(366～390) | √ | √ | |
| KN50UH | ≥1.39(13.9) | ≥11.5(915) | ≥24(1910) | 47～51(374～406) | √ | √ | |
| KN52UH | ≥1.42(14.2) | ≥10.8(860) | ≥24(1910) | 49～53(390～422) | √ | √ | |
| KN30EH | ≥1.08(10.8) | ≥10.0(796) | ≥30(2388) | 28～31(223～247) | √ | √ | |
| KN33EH | ≥1.13(11.3) | ≥10.5(836) | ≥30(2388) | 31～34(247～271) | √ | √ | |
| KN35EH | ≥1.17(11.7) | ≥10.8(860) | ≥30(2388) | 33～36(263～287) | √ | √ | |
| KN38EH | ≥1.22(12.2) | ≥11.0(876) | ≥30(2388) | 36～39(287～310) | √ | √ | |
| KN40EH | ≥1.25(12.5) | ≥11.0(876) | ≥29(2308) | 38～41(302～326) | √ | √ | |
| KN42EH | ≥1.28(12.8) | ≥10.0(796) | ≥29(2308) | 40～43(318～342) | √ | √ | |
| KN45EH | ≥1.33(13.3) | ≥11.8(939) | ≥29(2308) | 43～46(342～366) | √ | √ | |
| KN48EH | ≥1.37(13.7) | ≥11.8(939) | ≥29(2308) | 46～49(366～390) | √ | √ | |
| KN30TH | ≥1.08(10.8) | ≥10.0(796) | ≥35(2786) | 28～31(223～247) | √ | √ | |
| KN33TH | ≥1.13(11.3) | ≥10.5(836) | ≥35(2786) | 31～34(247～271) | √ | √ | |
| KN35TH | ≥1.17(11.7) | ≥10.8(860) | ≥35(2786) | 33～36(263～287) | √ | √ | |
| KN38TH | ≥1.22(12.2) | ≥11.0(876) | ≥34(2706) | 35～39(279～310) | √ | √ | |
| KN40TH | ≥1.25(12.5) | ≥10.5(836) | ≥34(2706) | 38～41(302～326) | √ | √ | |
| KN42TH | ≥1.28(12.8) | ≥10.0(796) | ≥34(2706) | 40～43(318～342) | √ | √ |
